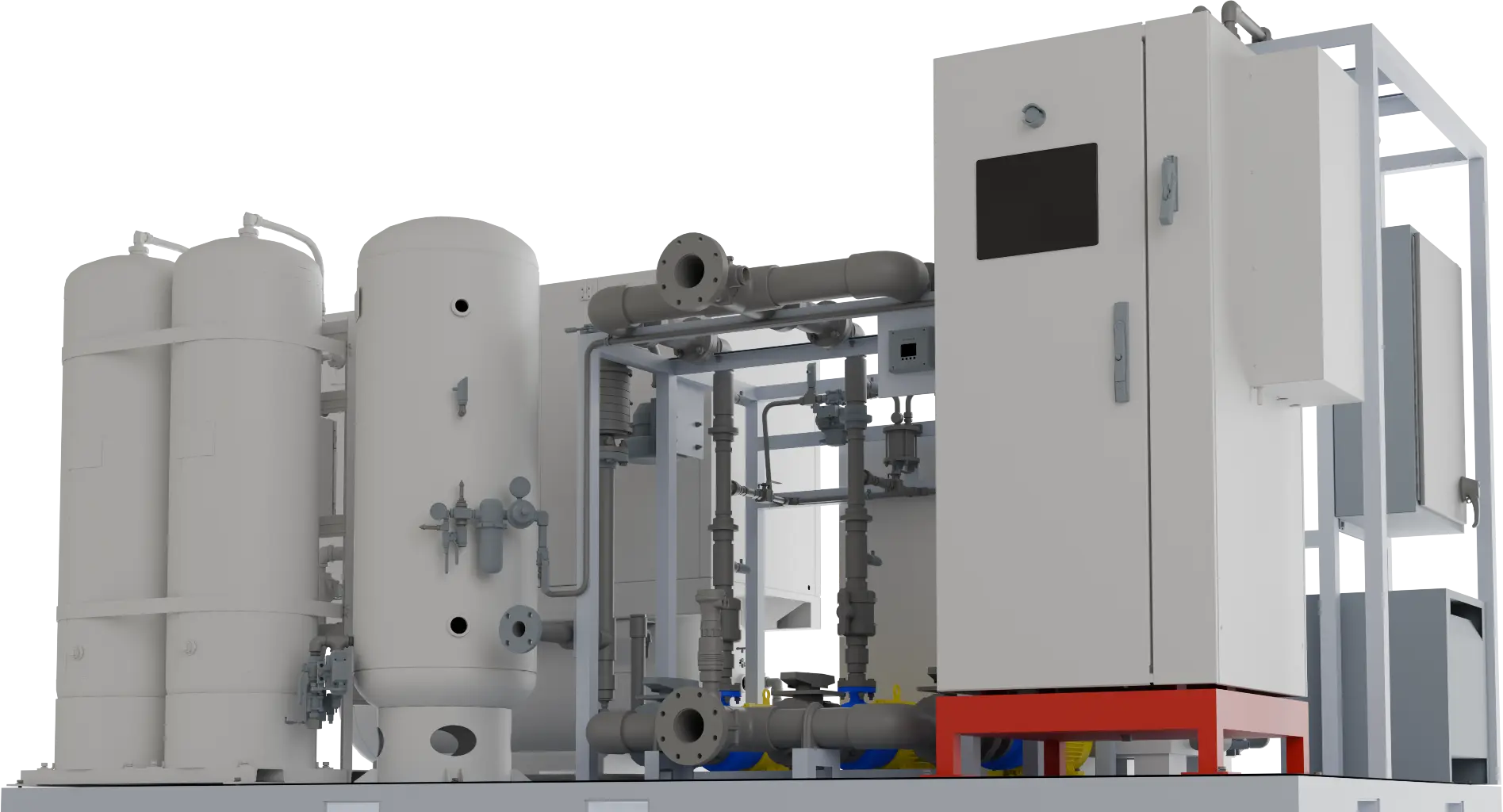

The Peak 5X Plus

All-in-One Simplicity. Unmatched Ozone Output.

Key Benefits

Turnkey Performance, Compact Design

True Turnkey Operation

Connect water & power, no extra skids needed.

Compact Footprint

Fits mechanical rooms, trailers, or containers.

Built-In Controls

Pre-programmed PLC, touchscreen HMI, SCADA compatibility.

Flexible Applications

Reuse, decentralized, industrial, aquaculture, cooling water.

Ease of Installation

Faster commissioning, zero integration issues.

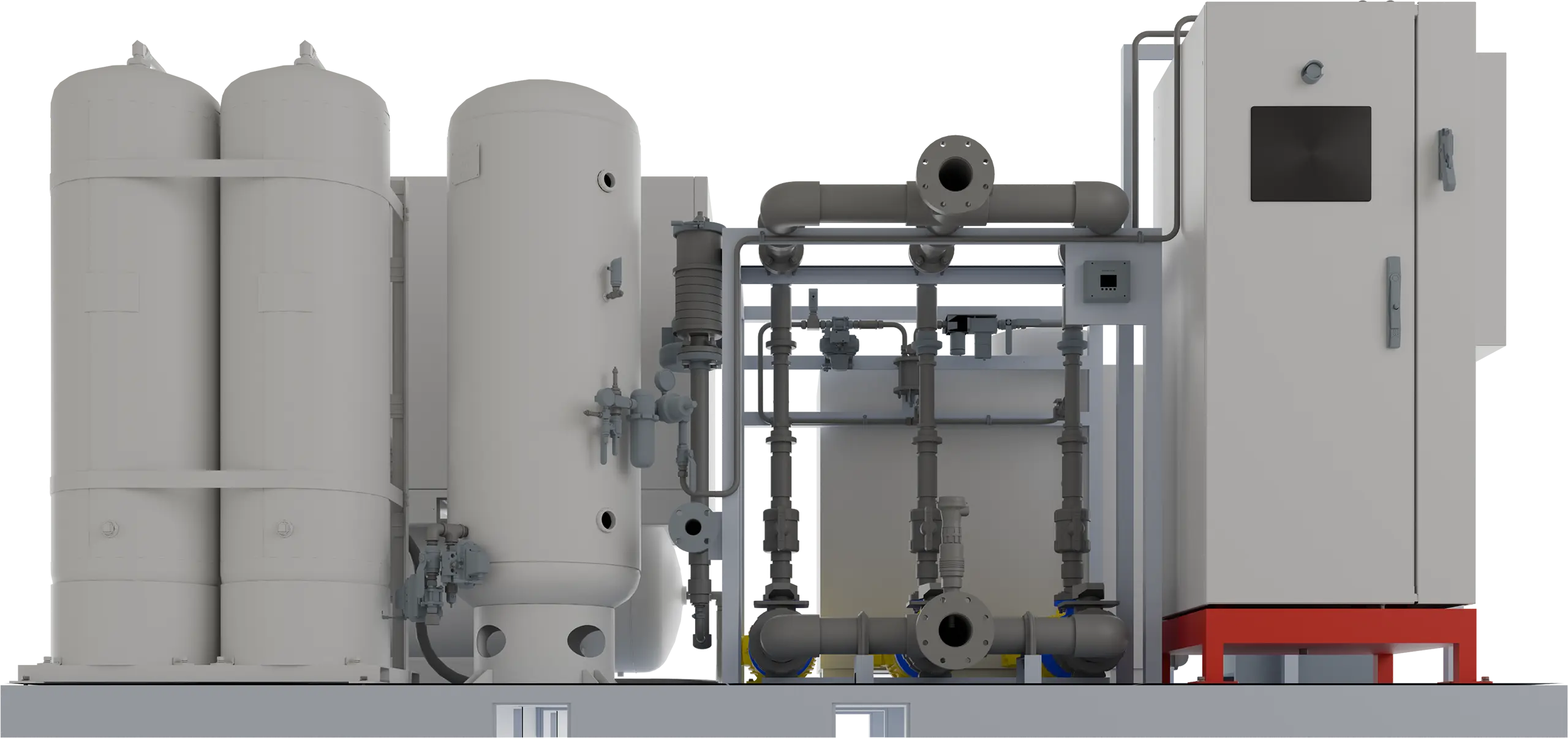

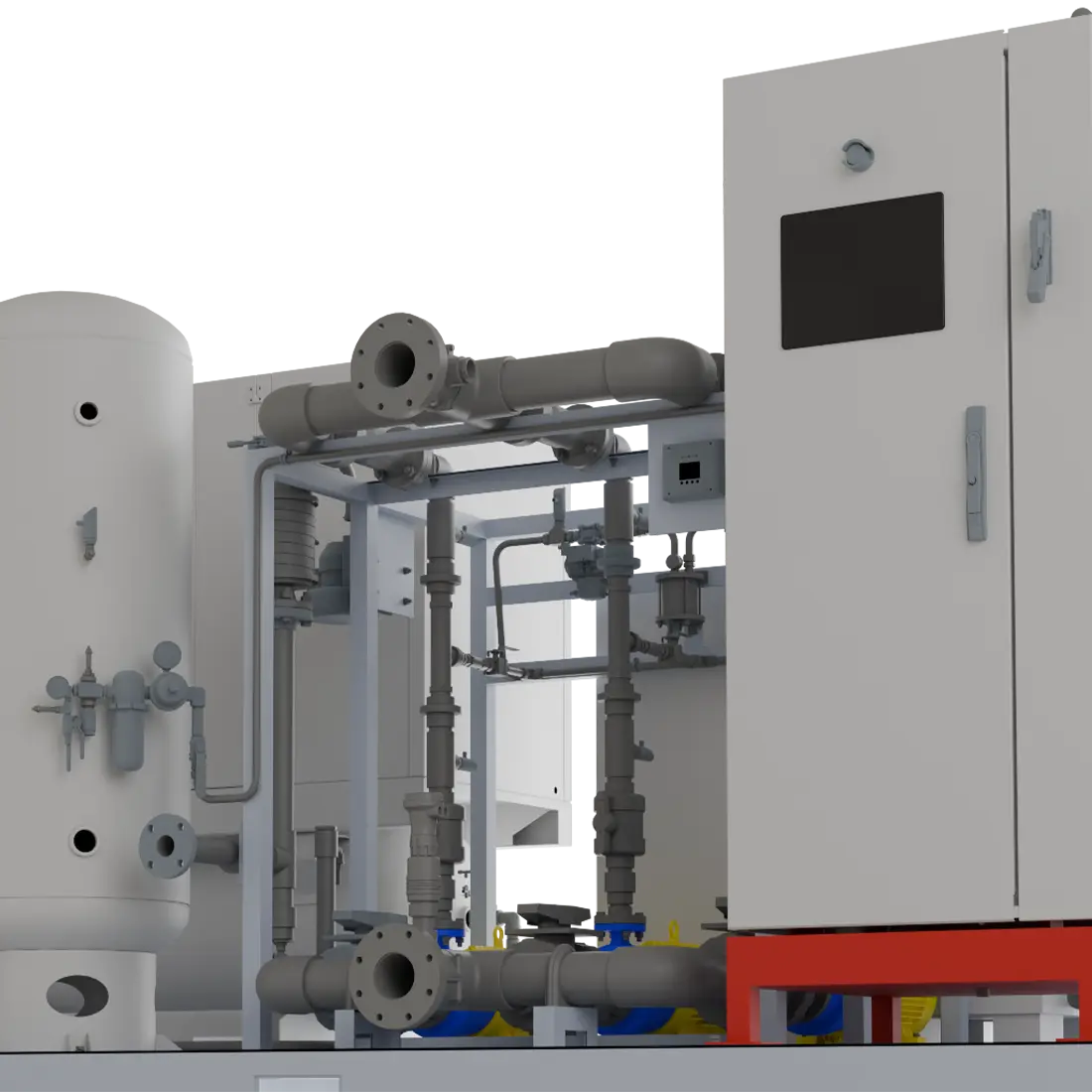

System Architecture

Everything You Need, Engineered into One Skid

The Peak 5X Plus eliminates complexity by integrating every major system component into a single, space-efficient skid.
Compressor
Oil-free, sized for demand.
Dry Air Tanks
Stable operation & pressure.
Oxygen Concentrator
High-purity oxygen supply.
Oxygen Storage Tank
Consistent flow buffering.
Ozone Generator
High-performance, modular design.
Chiller System
Optimized cooling & protection.
Ozone Injection Skid
Stable operation & pressure.
PLC + HMI Controls
Automation, monitoring, SCADA-ready.
Water In/Out Connections
Stable operation & pressure.

Designed, Built, and Supported by Pinnacle

A Complete Solution, Backed by PinnacleCare

  • Factory-assembled and tested

  • Delivered as one integrated skid

  • Commissioned on-site or remotely

  • Backed by PinnacleCare technical assistance
