The Peak

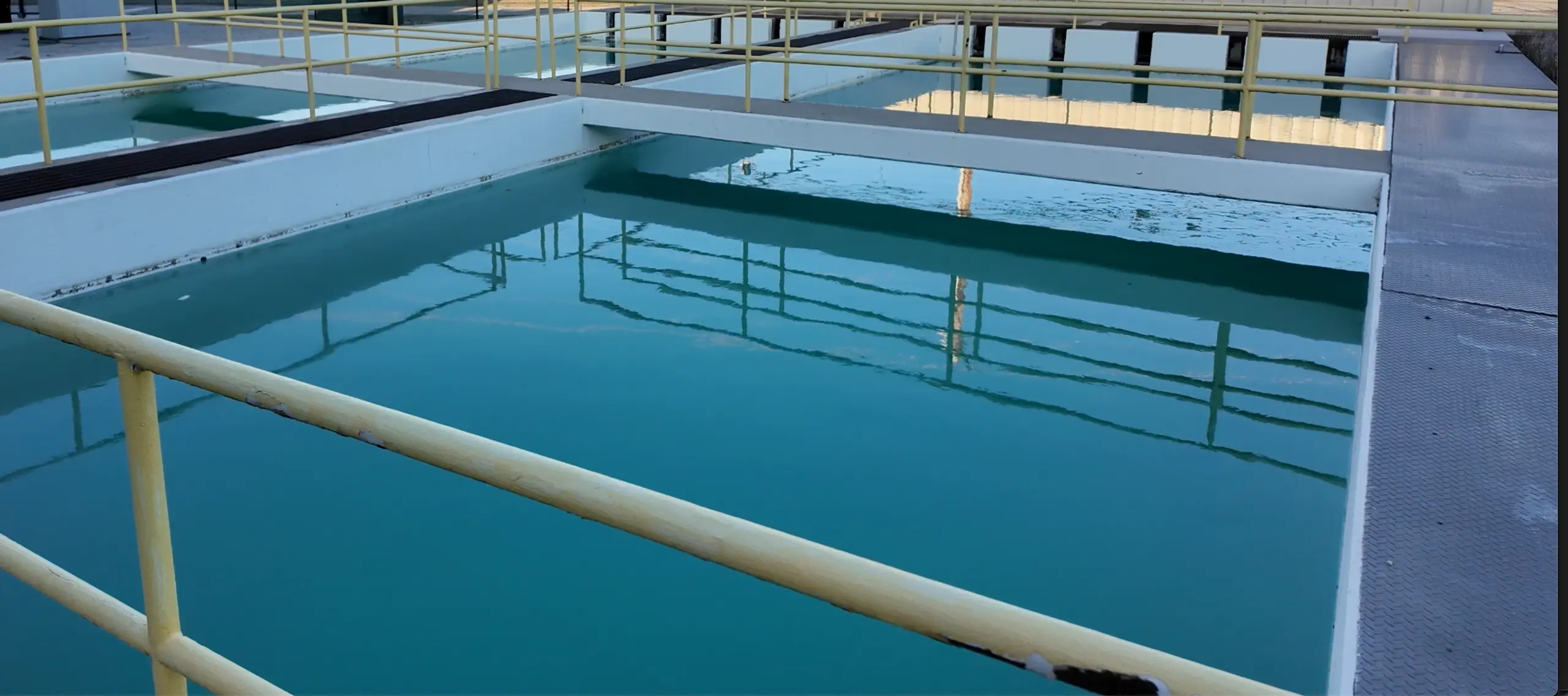

A versatile and efficient solution designed for a wide range of applications, including municipal, industrial, and aquaculture settings. With its advanced technology, the PEAK ensures optimal ozone production, setting a new standard in performance.
Product Gallery
Benefits
Cost Savings
Significant reduction in operational costs through energy-efficient performance.
Consistent Performance
Ensures reliable and continuous ozone production for critical applications.
Environmental Sustainability
Promotes eco-friendly practices by reducing energy use and enhancing treatment efficiency.
Applications
Technical specifications
Enclosure |
Sealed NEMA 12 with Integral Cooler Optional: NEMA 4X with Integral Cooler | |
| Minimum Clearance | Front/Back/Right 36 in (915 mm) / Left 18 in (457.5 mm) | |
| Dimensions (LxDxH) | 42” (1,062 mm) X 37” (933 mm) X 83” (2,107 mm) | |
| Weight | 1,200 lbs (545 kg) | |
Facility Connection Requirements |
Oxygen Inlet | 3/4” Tube |
| Ozone Outlet | 3/4” Tube | |
| Cooling Water Supply (CWS) & Return (CWR) | 3/4” Tube | |
| Electrical Service | 230 VAC/3ph/50-60Hz/ 60A (39FLA) | |
| Compressed Air Feed | 1/4" Push Lock Fitting | |
Ozone Output |
Ozone Output (LOX) | up to 45.6 kg/d @ 10% concentration, 54 kg/d @ 8% concentration |
| Ozone Output (PSA) | up to 38.4 kg/d @ 10% concentration, 45 kg/d @ 8% concentration | |
| Outlet Pressure | 20 psig Optional: up to 25 psig | |
Oxygen Requirements |
PSA, VSA, VPSA or LOX O2 Acceptable | |
| Maximum Oxygen Flow Rate | 465 slpm @ 20 psi inlet pressure | |
| Gasified Liquid Oxygen Feed | Dew Point: <-65C, Total Hydrocarbons (as CH4) <15 ppm. | |
| Max 0.1 µm Filter Inlet (not included) | ||
| N2 Feed NOT required. | ||
Cooling Water Requirements |
Type | Closed-Loop Chilled Water |
| Fluid | Food Grade Glycol-Water Blend (30/70 blend, not included) | |
| Typical Required Cooling Water Flow | ~12 gpm | |
| Cooling Load | ~4.25 Ton | |
Controls & Communication |
Schneider Electric Modicon M251 PLC Controller | |
| 15” RedLion™ Color Touch Screen HMI | ||
| Remote Access | Ethernet/IP/Webserver Interface. Ethernet Switch Provided. Optional: Cellular Modem (Cell Service Not Included) | |
| Uninterruptible Power Supply | ||
Controls Routines |
All Routines Available at Fixed or Variable O3 % BW | |
| Automatic | PID ORP (mv) or PID DO3 (ppm) | |
| Manual | Fixed Output (ppd or kg/h) or Full Manual | |
Accessories & Instrumentation |
|
|
Compliance & Certifications |
|
|
case studies
Learn about the tangible results our clients have experienced with our ozone generator, showcasing its effectiveness and versatility.
“The PEAK Ozone Generator has revolutionized our water treatment process, providing reliable and efficient performance.”
“Remarkable efficiency and cost savings with the PEAK Ozone Generator. A game-changer for our industrial operations.”
